Constructing regulable supports via non-stoichiometric engineering to stabilize ruthenium nanoparticles for enhanced pH-universal water splitting

Principles of carrier design

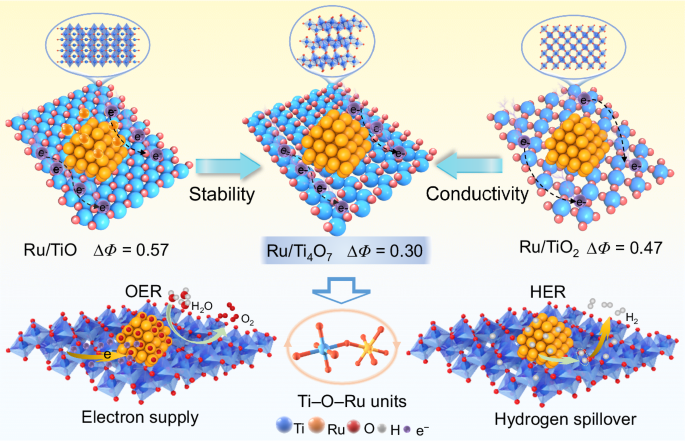

As shown in Fig. 1, non-stoichiometric engineering was employed to finely customize titanium oxide supports (TiO, Ti₄O₇, and TiO₂) with oxygen vacancies of periodic arrangements. Ti₄O_7, with regularly arranged defects, emerges as a potential competitor with superior structural stability over multi-defect TiO and significantly higher conductivity than TiO₂. More importantly, Ti₄O₇ exhibits a suitable metal-support interaction, which lays the foundation for the dual-function activity of Ru/Ti₄O₇ in both HER and OER. On the one hand, the higher work function compared to Ru NPs promotes the electron richness of Ru, which can alleviate the dissolution of Ru in OER. On the other hand, compared to TiO and TiO₂, the minimum work function difference between Ti₄O₇ and Ru NPs (∆Φ = 0.30 eV) can reduce the interface Schottky barrier (Supplementary Fig. 1), which promotes electron transport in the composite catalyst and trigger hydrogen spillover during HER.

Morphology and crystal structure

Ru nanoparticles (NPs) were deposited on titanium oxide supports with different stoichiometric ratios (TiO₂, Ti₄O₇, and TiO) via a wet chemical method (Fig. 2a). Ti₄O₇ has potential electrocatalytic advantages in support of Ru NPs due to the chemical stability superior to TiO and electrical conductivity far superior to TiO₂. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) images display the uniform coating of the titanium oxide supports by Ru NPs with a size of ~10 nm (Figs. 2b and 1c). The suitable oxygen vacancies in Ti₄O₇ promote the Ru³⁺ adsorption on Ti₄O₇, which endows the Ru NPs with a more uniform distribution on Ti₄O₇ compared to TiO₂ with low vacancies (Supplementary Figs. 2–6)^38,39. In aberration-corrected high-resolution (AC-HRTEM) of Ru/Ti₄O₇, tight binding and appropriate matching at the nanoscale between the different phases can be observed, accompanied by a smooth transition at the interface (Fig. 2d). The simulated High Angle toroidal dark field image-scanning transmission electron microscope (HAADF-STEM) images obtained through the crystal structure of Ti₄O₇ and Ru show remarkable agreement with the experimental results (Figs. 2e and 1f). Based on these atomic images, the lattice spacing of 0.377 nm can be attributed to the (1 0 2) plane of Ti₄O₇ (JCPDS 50-0787), while the lattice spacing of 0.234 nm corresponds to the (1 0 0) plane of Ru (JCPDS 89-4903, Figs. 2g, 1h, and Supplementary Fig. 7). In addition, Ru, Ti, and O elements are uniformly distributed in the energy-dispersive spectroscopy (EDS)-mapping of Ru/Ti₄O₇ (Fig. 2i), and the characteristic diffraction peaks assigned to Ru and Ti₄O₇ coexist in the X-ray diffraction (XRD) pattern (Fig. 2j). The above results indicate that Ti₄O₇ can achieve a suitable interfacial lattice contact with Ru NPs, which provides the possibility for adaptive metal-support interaction and rapid interface electron migration^21,40.

Electronic and coordination structure analysis

The oxygen vacancy concentration in Ru/TiO₂, Ru/Ti₄O₇, and Ru/TiO shows an increasing trend due to the different stoichiometric ratios of Ti and O (Fig. 3a). The periodically arranged oxygen vacancy not only improves the conductivity of the support but also provides the possibility to form the bridging interfaces between the Ti₄O₇ and the Ru NPs. In the X-ray photoelectron spectroscopy (XPS) fine spectra of Ru/TiO₂, Ru/Ti₄O₇, and Ru/TiO, the Ti 2p and Ru 3p regions display close overlap (Fig. 3b). The binding energy of Ti 2p in different Ru-loaded titanium oxide materials shows various degrees of shift to the high binding energy (Fig. 3b, and Supplementary Figs. 8–10), which indicates that titanium oxide can serve as an electron donor to promote electron enrichment of Ru (Fig. 3c). As shown in Supplementary Fig. 8c, Ru NPs exhibit only the characteristic peaks of metallic Ru. In the Ru 3d region of Ru/Ti₄O₇, the signals attributed to Ru–O and Ru–Ru can be observed, corresponding to the interface Ti–O–Ru units^41,42. Similar local electronic changes can be further observed in the fine structure of X-ray absorption (XAFS). In the X-ray absorption near-edge structure (XANES), the Ru K-edge also exhibits different white line peak intensity after contacting with various titanium oxide supports (Fig. 3d). Importantly, Ru in Ru/Ti₄O₇ has the closest valence state to Ru foil compared with that in Ru/TiO₂ and Ru/TiO, which is attributed to the low work function difference of Ti₄O₇ and Ru obtained by the ultraviolet photoemission spectroscopy (UPS) measurements (Supplementary Fig. 1). Meanwhile, Ti pre-K-edge of Ru/Ti₄O₇ shows a shift to higher energy compared with that of Ti₄O₇, suggesting that the increased valence state of Ti in Ru/Ti₄O₇ (Supplementary Fig. 11). The above results indicate that Ru serves as an electron acceptor to form a Schottky contact with the titanium oxide support, and Ti₄O₇ possesses the best adaptability of the electronic structure with Ru NPs to reduce the interface Schottky barrier. Extended X-ray absorption fine structure (EXAFS) spectra of Ru corresponding k²-weighted EXAFS Fourier transform spectra display a weak Ru–O signal located at 1.92 Å after contacting with TiO₂ or Ti₄O₇ (Fig. 3e). This phenomenon should originate from the interface Ti–O–Ru units between Ru and titanium oxide, which is observed in the wavelet transform more clearly (Fig. 3f). The stable Ti–O–Ru units effectively stabilize the active species and serve as an electron channel to further reduce the interface electron transfer resistance⁴³. As shown in Fig. 3g, the shift of Ti pre-K-edge reflects the changed oxide valence states of Ti in different stoichiometric titanium oxide supports. Furthermore, As illustrated in the k²-weighted EXAFS Fourier transforms of Ti K-edge of Ru/TiO₂ and Ru/Ti₄O₇ (Fig. 3h) and the corresponding wavelet transform (Fig. 3i), the structure belonging to Ti–O–Ru/Ti further verifies the formation of the interface Ti–O–Ru units.

Electrocatalytic activity and stability evaluation

The electrocatalytic activities of the Ru-loaded titanium oxides were evaluated in a standard three-electrode system to verify the unique advantages of the Ti₄O₇ support. In the acidic media, Ru/Ti₄O₇ with optimized Ru loading and annealing temperature exhibits the lowest OER overpotential (150 mV at 10 mA cm⁻², Fig. 4a and Supplementary Fig. 12) and Tafel slope (41.26 mv dec⁻¹, Fig. 4b, c). For HER, Ru/Ti₄O₇ also displays an ultra-low overpotential of 8 mV at 10 mA cm⁻² in acidic environments, which is superior to commercial Pt/C and other titanium oxide supported Ru NPs (Fig. 4d). Remarkably, as shown in Fig. 4e, the Tafel slope of Ru/Ti₄O₇ with minimum work function difference is only 21.24 mV dec⁻¹, which is significantly lower than the value of the conventional Volmer-Heyrovsky/Tafel mechanism (30 mV dec⁻¹)^44,45,46. The low work function difference between metal and support is prone to trigger the hydrogen spillover mechanism during HER and provide a low interfacial Schottky barrier and fast interfacial electron migration⁴⁷. Electrochemical impedance spectroscopy (EIS) further verifies the lowest electron-transfer resistance of Ru/Ti₄O₇ (Supplementary Fig. 13). Notably, the superior difunctional activity of Ru/Ti₄O₇ also exhibited scalability in the neutral and basic environments (Fig. 4c, f, and Supplementary Figs. 14–17). In addition, Ru/Ti₄O₇ exhibits the highest double-layer capacitance (C_dl) value (68.95 mF cm⁻²) with the same Ru loading, suggesting that more exposed Ru active sites of the Ru/Ti₄O₇ compared to Ru/TiO₂ and Ru/TiO (Supplementary Figs. 18 and 19). The LSV polarization curves normalized by C_dl and the mass of Ru indicate that the active Ru sites in Ru/Ti₄O₇ have the highest specific activities (Supplementary Fig. 20) and mass activity (Supplementary Fig. 21). The outstanding bifunctional performance of Ru/Ti₄O₇ exceeds that of most of the excellent bifunctional catalysts in the recent reports (Supplementary Tables 2, 3), especially in acidic environments (Fig. 4g).

The stability of Ru/Ti₄O₇ was validated via chronopotentiometry. In severe acidic environments, Ru/Ti₄O₇ demonstrates surprising stability of OER and HER for 500 h with a negligible activity decay (Fig. 4h) and slight structural collapse (Supplementary Fig. 22), which exceeds the operating life of Ru/TiO (Supplementary Fig. 23). Ru/Ti₄O₇ also requires lower potentials to drive OER compared to Ru/TiO₂, contributing to the lower energy consumption of the water electrolysis devices over a long period (Supplementary Fig. 23). More importantly, Ru/Ti₄O₇ can maintain stable operation for 300 h at a high current density of 200 mA cm⁻² with only slight activity decay after 3000 cyclic voltammetry (CV) cycles (Supplementary Figs. 24 and 25). The lower current response in the CV corresponding to the oxidation-reduction of Ru in Ru/Ti₄O₇ compared to Ru and Ru/TiO implies the inhibited oxidation of Ru by Ti₄O₇ (Supplementary Fig. 26). Supplementary Fig. 27 manifests that the Ru and Ti loss of Ru/Ti₄O₇ gradually slows down during long-term OER. Ti gradually dissolves in the first 50 h of cycling, which is attributed to the reaction between the unstable surface of the electrode. After 50 h, the dissolution rate of Ti slows down due to the stabilization of the surface of the electrode. Furthermore, the characteristic diffraction peaks belonging to Ru and Ti₄O₇ can still be observed in the XRD pattern of Ru/Ti₄O₇ after OER without new characteristic peaks compared to the apparent dissolution of Ru/TiO (Supplementary Fig. 28). As shown in the electron paramagnetic resonance (EPR) spectra (Supplementary Fig. 29) and XPS spectra of O 1 s before and after stability tests (Supplementary Fig. 30a), a slight decrease in oxygen vacancies in the Ti₄O₇ support is observed, indicating the structural stability of the Ti₄O₇ support under high current densities. In addition, the almost unchanged XPS signals of Ti and Ru with slight shift towards high binding energy after OER further provide evidence for the good structural maintenance of Ru/Ti₄O₇ during the reaction (Supplementary Fig. 30b). The excellent stability of Ru/Ti₄O₇ is attributed to inhibited oxidation process, which should be derived from the electron enrichment of Ru through the stabilized Ti–O–Ru units.

Origin of enhanced difunctional activity of Ru/Ti₄O₇

A series of in-situ tests were performed in acid environments to trace the origin of the activity and stability of Ru/Ti₄O₇. In-situ XAFS explored the structural evolution of Ru/Ti₄O₇ during OER. Ru/Ti₄O₇ underwent 20 CV cycles to obtain the stable surface before recording the in-situ XAFS spectra. In the most severe acidic environments, the intensity of the white line of the Ru K-edge increases with the applied potentials of OER (Fig. 5a), indicating the oxidation of Ru NPs. Furthermore, in the Fourier transform R-space (Fig. 5b), the gradually increased signal intensity of the Ru–O path verifies the formation of RuO_x. Notably, the peaks attributed to metallic Ru–Ru can always be observed even under the high potentials of OER, which corresponds to the Ru metallic phase shown in the XRD pattern of Ru/Ti₄O₇ after OER. The above results indicate that the RuO_x species locally formed on the Ru/Ti₄O₇ can act as a barrier layer to slow down the further oxidation and dissolution of Ru NPs. The in-situ XAFS spectra show that the Ti K-edge of Ti₄O₇ almost completely overlaps under the OER potentials without prominent oxidation characteristics, which benefits from the stable structure of Ti₄O₇ (Supplementary Fig. 31a). The R-space of Ti further verifies that the Ti–O bond in Ti₄O₇ does not change significantly during OER (Supplementary Fig. 31b). The stability of Ru/Ti₄O₇ can be more verified in the explicit valence states of Ti, and Ru. The valence state corrected by the normalized white line intensity of the corresponding reference of Ti in Ru/Ti₄O₇ changes slightly between 3.52 and 3.61 with the application potentials growing (Supplementary Fig. 32). Meanwhile, the average valence state of Ru increases from 0.98 to 1.64. The significant change does not appear until the potential reaches 1.7 V vs. RHE (Fig. 5c). This phenomenon further verifies that the Ru NPs still maintain structural stability under high potentials of OER. The incomplete oxidation of Ru NPs is beneficial to maintaining the outstanding conductivity of the composite material during the electrocatalytic process. In the HRTEM image of Ru/Ti₄O₇ after OER, the tight interfacial contact between Ru NPs and Ti₄O₇ can still be maintained (Supplementary Fig. 33). In addition, a locally amorphous structure can be observed in the outer layer of Ru NPs in Ru/Ti₄O₇ after OER, which should correspond to the RuO_x species (Fig. 5d).

Moreover, the reaction mechanism of OER was revealed by in-situ attenuated total reflection-surface enhanced infrared absorption spectra (ATR-SEIRAS). Figure 5e shows that, as the bias increases to 1.4 V vs. RHE, in-situ ATR-SEIRAS spectra of Ru exhibit absorption bands around the vibration frequency of 1038 cm⁻¹, corresponding to the *OOH/*OO intermediates. Simultaneously, a distinct absorption signal at the vibration frequency of 1189 cm⁻¹ gradually strengthens with the application of OER potential, corresponding to *O-O* in the LOM. In-situ ATR-SEIRAS spectra of Ru/Ti4O₇ appear at similar positions as Ru, attributing to the absorption bands of *OOH/*OO (Fig. 5f). The broadening and shifting of absorption peaks may originate from the transition of the deprotonation process. Furthermore, almost no signal corresponding to *O-O* is observed around the vibration frequency of 1190 cm⁻¹. Additionally, the normalized density difference of in-situ ATR-SEIRAS spectra corresponding to *OOH/*OO and *O-O* signals is presented in Fig. 5g to determine the proportion occupied by adsorption evolution mechanism and LOM in the acidic OER process³⁸. The higher adsorption density difference implies a higher proportion of adsorption evolution mechanism in the reaction process. In the high potential range, Ru undergoes surface reconstruction to form RuO_x species, enabling both the adsorption evolution mechanism and LOM to drive OER. Meanwhile, in-situ ATR-SEIRAS spectra of Ru/Ti₄O₇ consistently exhibit a higher adsorption density difference than Ru during OER. This phenomenon indicates that Ru/Ti₄O₇ tends to drive OER through the adsorption evolution mechanism, which can realize more stable OER compared with the LOM with potential catalyst dissolution. In the pH-dependence tests, compared with Ru NPs, Ru/Ti₄O₇ showed less correlation with acidity, which verified that it was more inclined to drive OER with adsorption evolution mechanism (Supplementary Fig. 34). These results demonstrate that Ru/Ti₄O₇ tends to drive OER through the surface adsorption evolution mechanism, which can realize more stable OER compared with the LOM with potential catalyst dissolution^38,48.

Pulse voltammetry test was employed to assess the deprotonation capability of catalysts, which can confirm the source of the enhanced activity of Ru/Ti₄O₇ in OER^49,50. Under different voltage pulses (Supplementary Fig. 35), Ru and Ru/Ti₄O₇ exhibit alternating cathodic and anodic current pulses (Fig. 5h). The oxidation charge storage capacity of different catalysts was further measured by integrating the anodic current response to voltage pulses. As shown in Fig. 5i, Ru/Ti₄O₇ demonstrates a higher oxidation charge storage capacity compared to Ru NPs, implying that Ru/Ti₄O₇ undergoes a faster deprotonation process to form reaction intermediate *O⁴⁹. These findings suggest that the appropriate metal-support interactions between Ti₄O₇ and Ru can activate Ru sites by promoting the deprotonation process in OER. Furthermore, in the EIS bode plots, the pre-OER process of Ru/Ti₄O₇ results in an uneven distribution of surface charges (Supplementary Fig. 36), which is manifested by a reduction in the frequency peaks within the range of 1.40-1.45 V vs. RHE and a shift towards higher frequencies compared to the broader transition phase peaks of Ru NPs (1.35–1.45 V vs. RHE). This phenomenon suggests that Ru/Ti₄O₇ exhibits a faster charge dissipation to accelerate deprotonation during OER to reaction kinetics⁵¹. In summary, the moderate metal-support interactions between Ru NPs and Ti₄O₇ through Ti–O–Ru units can reduce interface Schottky barriers to accelerate electron transfer and achieve electron enrichment at Ru sites to slow down the corrosion of Ru during OER^52,53,54. In addition, electronic modulation of active Ru sites facilitates the deprotonation process of OER (Fig. 5j). During the HER process, EIS Nyquist plots at different current densities were recorded and fitted by the equivalent circuit inset of Supplementary Fig. 37a. R₂ reflects the hydrogen adsorption resistance on the material surface in the equivalent circuit^13,44. Hydrogen adsorption kinetics were quantified by plotting logR₂ versus overpotential and calculating the EIS-derived Tafel slopes. As shown in Supplementary Fig. 37, the reduced slope of Ru/Ti₄O₇ of 21.3 mv dec⁻¹ compared with that of Ru/TiO₂ and Ru/TiO indicates the accelerated hydrogen adsorption kinetics, which is related to the hydrogen spillover (Supplementary Fig. 38, and Supplementary Table 4). The above results further demonstrate that Ru/Ti₄O₇ achieves fast HER kinetics through a potential hydrogen spillover mechanism.

Theoretical calculation for intrinsic activity and stability analysis

Density functional theory (DFT) calculations reveal the impact of the support adaptability of Ti₄O₇ on the electronic structure modulation and the bifunctional reactivity of the Ru sites. The energy band structure manifests that Ti₄O₇ and TiO have a rich density of state distribution at the Fermi level, symbolizing their superior conductivity compared to a noticeable band gap of TiO₂ (Supplementary Fig. 39). The differential charge density shows a significant yellow area near the Ru atoms at the interface between Ru and Ti₄O₇, which verifies the electron enrichment of Ru atoms (Supplementary Figs. 40 and 36c)⁵⁵. In the average potential profile (Supplementary Fig. 41d), the electrostatic potential difference between Ru and Ti₄O₇ can be more explicitly observed. Subsequently, Pourbaix diagrams were utilized to verify the stabilization of Ru based on Ti–O–Ru units between Ru and titanium oxide supports. According to the Pourbaix diagram of Ru–O (Fig. 6a), Ru is prone to over-oxidation to form high-valent Ru⁴⁺ at high potentials for OER, especially in acidic environments. Furthermore, the robust interface Ti–O–Ru units effectively increases the theoretical dissolution potential of Ru in electrochemical oxidation as shown in the Pourbaix system of Ti–O–Ru (Fig. 6b). In Fig. 6c, the Bade and valence state calculations at the interface show that the Ru sites at the Ru/Ti₄O₇ interface have the highest valence state (−0.007), which is closest to the initial valence state of Ru and consistent with the XAFS results. This electronic structure adaptability gives Ru/Ti₄O₇ a lower interface Schottky barrier compared to Ru/TiO₂ and Ru/TiO to accelerate interface electron migration and trigger the hydrogen spillover mechanism for HER⁴⁷.

The structural model corresponding to the partially oxidized Ru NPs loaded on Ti₄O₇ was constructed to calculate the OER pathways based on the adsorption evolution mechanism (Supplementary Figs. 41–43). The local oxidation combined with the electron redistribution between Ru and different titanium oxide supports endow the Ru sites with varying intrinsic activities through the d-band center modulation. The downward shift of the d-band center reduces the energy of the antibonding orbitals formed by the adsorption reaction intermediates and the d-orbitals of Ru, which implies the weak adsorption of reaction intermediates^48,56. Therefore, in the surface oxidized Ru/TiO, Ru/TiO₂ and Ru/Ti₄O₇, the d-band centers of the Ru sites are −1.80 eV, −1.81 eV and −2.07 eV, respectively (Supplementary Fig. 44 and Supplementary Table 5), which endow the corresponding *OH adsorption free energies with −0.482 eV, 0.435 eV, and 0.703 eV at U = 0 V, respectively (Fig. 6d). Subsequently, the deprotonation process is also optimized. Ru/Ti₄O₇ exhibits the smallest deprotonation free energy and the lowest theoretical potential for OER (ΔG = 1.540 eV, Supplementary Table 6). The enhanced deprotonation process is consistent with experimental results. The catalysts drive HER in its initial structure at the reduction potentials (Supplementary Fig. 45)^21,57. The free energy step diagram verifies that the weak HER activity of Ru sites in Ru NPs originated from the strong adsorption of HER intermediates (Fig. 6e). Specifically, the d-band center of Ru at the interface exhibits distinct variations with the interface electron migration induced by the contact between Ru and different titanium oxides. The d-band center of Ru is −1.72 eV. After contact with TiO, TiO₂, and Ti₄O₇, the corresponding d-band centers of Ru shift to −1.77 eV, −1.89 eV, and −1.98 eV, respectively (Supplementary Fig. 46). Owing to the downward shift compared to the original Ru NPs induced by the metal-support interaction, the Ru sites in Ru, Ru/TiO, Ru/TiO₂, and Ru/Ti₄O₇ have *H adsorption free energies of −0.745 eV, −0.446 eV, −0.171 eV, and 0.123 eV, respectively (Fig. 6e, Supplementary Table 7)^58,59. Therefore, Ru/Ti4O7 has the lowest theoretical reaction potential of 0.123 eV for HER. The theoretical calculations further verified that the appropriate support can promote the intrinsic activity of the Ru sites for both OER and HER.

Performance of the water electrolysis device

Firstly, the unique advantages of suitable support design were verified through membrane-free water electrolysis tests. As shown in Fig. 7a, the water electrolysis driven by Ru/Ti₄O₇ with excellent bifunctional activity only requires a cell voltage of only 1.44 V to reach a current density of 10 mA cm⁻² with stable operation for 300 h (Fig. 7b) in the acidic environments. Noteworthily, the corresponding Faraday efficiency is also close to 100%. This excellent water splitting performance exceeds that of the state-of-the-art difunctional catalysts recently reported in the acidic media (Fig. 7c). The superiority of the Ti₄O₇ support for water splitting in the pH-universal environments has also been verified (Supplementary Figs. 47, 48 and Supplementary Table 8). Benefitting from the advantages of conductivity and stability, Ru/Ti₄O₇ was used as both cathode and anode catalysts in the MEA electrolyzers (Fig. 7d). For the PEM water electrolysis (Fig. 7e), Ru/Ti₄O₇ ‖ Ru/Ti₄O₇ exhibits significantly lower cell voltage than that of RuO₂ ‖ Pt/C and maintains long-term operation of 200 h at 200 mA cm⁻² and 300 h at 500 mA cm⁻² (Fig. 7f and Supplementary Fig. 49), which is superior to most recently reported Ru-based catalysts (Supplementary Table 9). The unique structural advantages of the PEM electrolyzer and the characteristics of high-temperature operation combined with the excellent stability of Ru/Ti₄O₇ achieve robust PEM water electrolysis⁶⁰. The EIS Nyquist curves of the MEA further verified the conductivity advantage of Ru/Ti₄O₇, which significantly reduces the energy consumption of the electrolyzer under high current densities (Supplementary Fig. 50)⁶¹. Furthermore, Ru/Ti₄O₇ also possesses extensible high activity and stability in AEM (Supplementary Fig. 51). The apparent advantages of bifunctional Ru/Ti₄O₇ in membrane electrode assembly show impressive industrialized application prospects.
